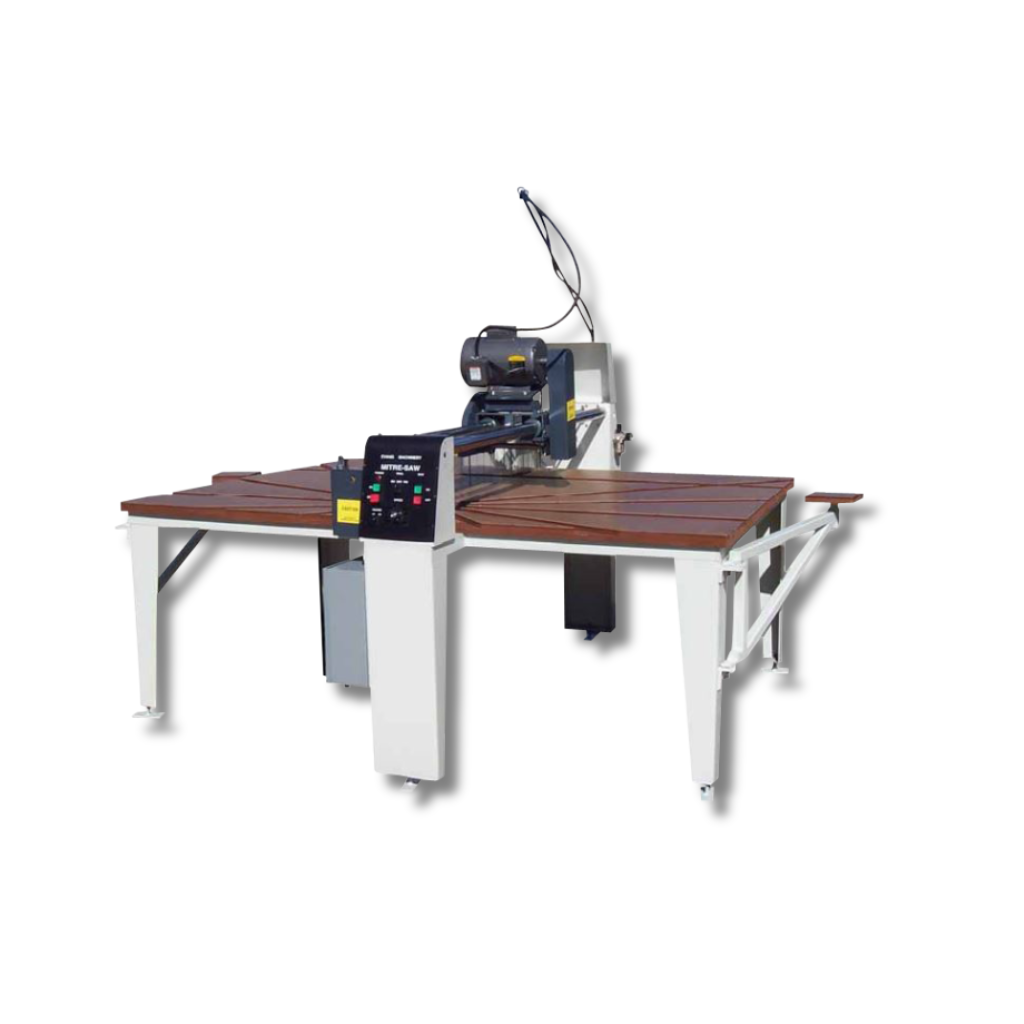

EM 0710 Countertop Saw, Power Feed with Variable Speed Control

Standard Features:
  • Variable speed control 0-40 feet per minute, chain drive
  • 16" Saw blade 1 " arbor
  • Set up for 90, 45, and 22 1/2 degree cuts
  • Pneumatically operated Saw Guard
  • Double V belt Drive on arbor
  • Swing out supports for longer lengths
  • 60" x 96" working surface
  • 4" dust outlet on back of dust hood
  • Built in overload protection
  • 35 1/2" working height. Adjustable leveling feet.
  • 50" stroke
Technical Data and Specifications
  • Spindle Size: 1" Bore, 7/8-14 Threads, Left Hand Nut

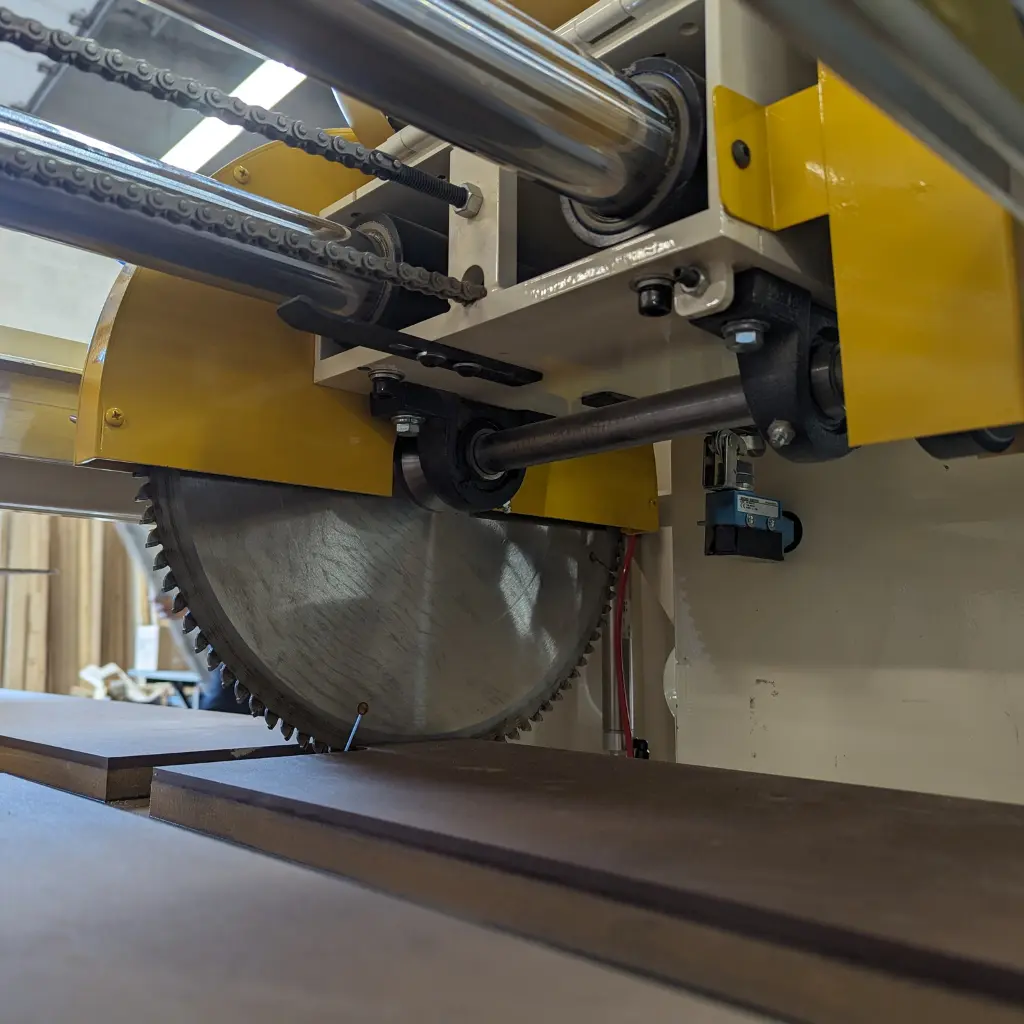

  • Saw Blade: 16" Diameter, 100 Tooth, TCG Grind Recommended
  • Spindle Motor: 3 HP, 3600 RPM
  • Feed Motor: 0.25 HP, DC
  • Electrical: Options Available
  • Air: 70-80 PSI, 2 CFM
  • All Electrical components are CSA certified
Available Options
  • Pneumatic hold down with 4 cylinders
Shipping Dimensions: 104" L x 97" W x 72" H

Shipping Weight: 1,500 LBS

$ 0.00 $ 0.00

Contact us for pricing.
