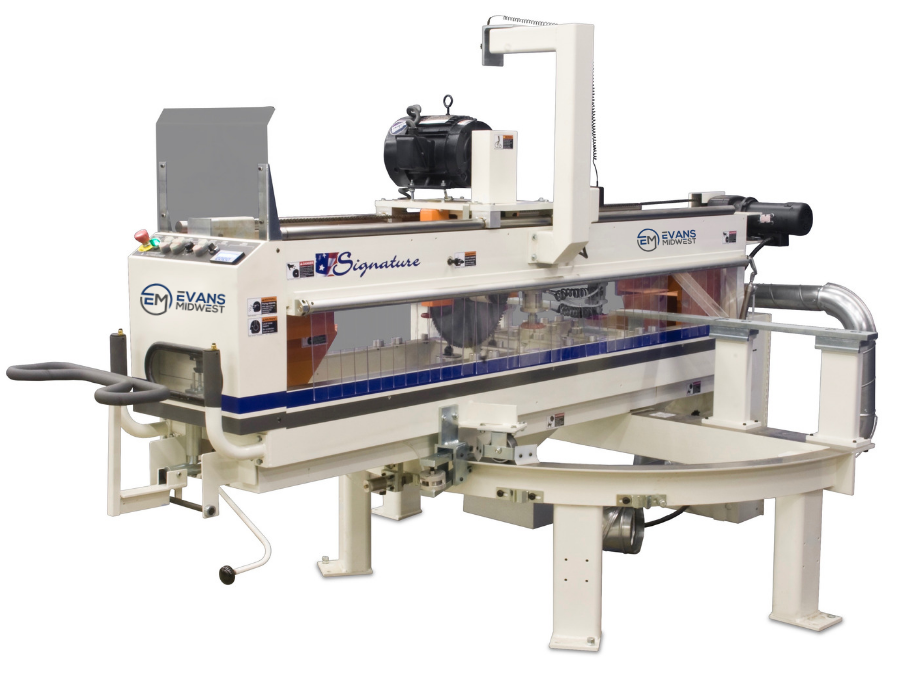

Evans Midwest CS XL Cutting Station, 16"

Upper frame pivots 90° right and left of center with five (5) fixed position stops at 2 21/2°, 45°and 90°
Pneumatically retracted locking pin
Variable speed forward/reverse drive
Saw carriage is guided with linear bushings running on hardened and precision ground rails
Belt-driven saw arbor with dual ball bearings
Routing system includes:
- Four (4) router motors
- Guiding template
- PVC covered handle
- Operator handle and safety interlock
- Router template window
- Rotating router template pin with ball bearing
Two (2) adjustable pneumatic hold-down clamps per side
OSHA-recognized Awareness Barrier meets ANSI 01.1 safety requirements for woodworking machines
Three (3) dust collection hook-ups, with 4 inch (102 mm) ports
41 1/2 inch (1055 mm) long heavy-duty fence
Plexiglass shield
Low profile control panel
End guards with safety interlocks
16 inch diameter (406 mm) carbide tip saw blade,100 teeth
Four (4) 1/2 inch diameter (12 mm) carbide tip router bits
Emergency stop
All Electrical components are UL & CSA certified

Dust Collection Requirements:

2,350 cfm minimum.

208/230/3

Cutting Length @ 90° = 54 in.

Cutting Length @ 45° = 37.5 in.

Cutting Height = 5-5/8 in.

Includes 16 in. Saw Blade, Standard Fence, Routing System, Router Bits, and Pneumatic Side Shield

Crated Dimensions:

125"L x 91"W x 87"H

2,760 LBS

Voltage (Old)
- 208V, 3Ø, 60Hz
- 230V, 3Ø, 60Hz
- 460V, 3Ø, 60Hz + $ 1,250.00
- 525V + $ 1,350.00

This combination does not exist.
