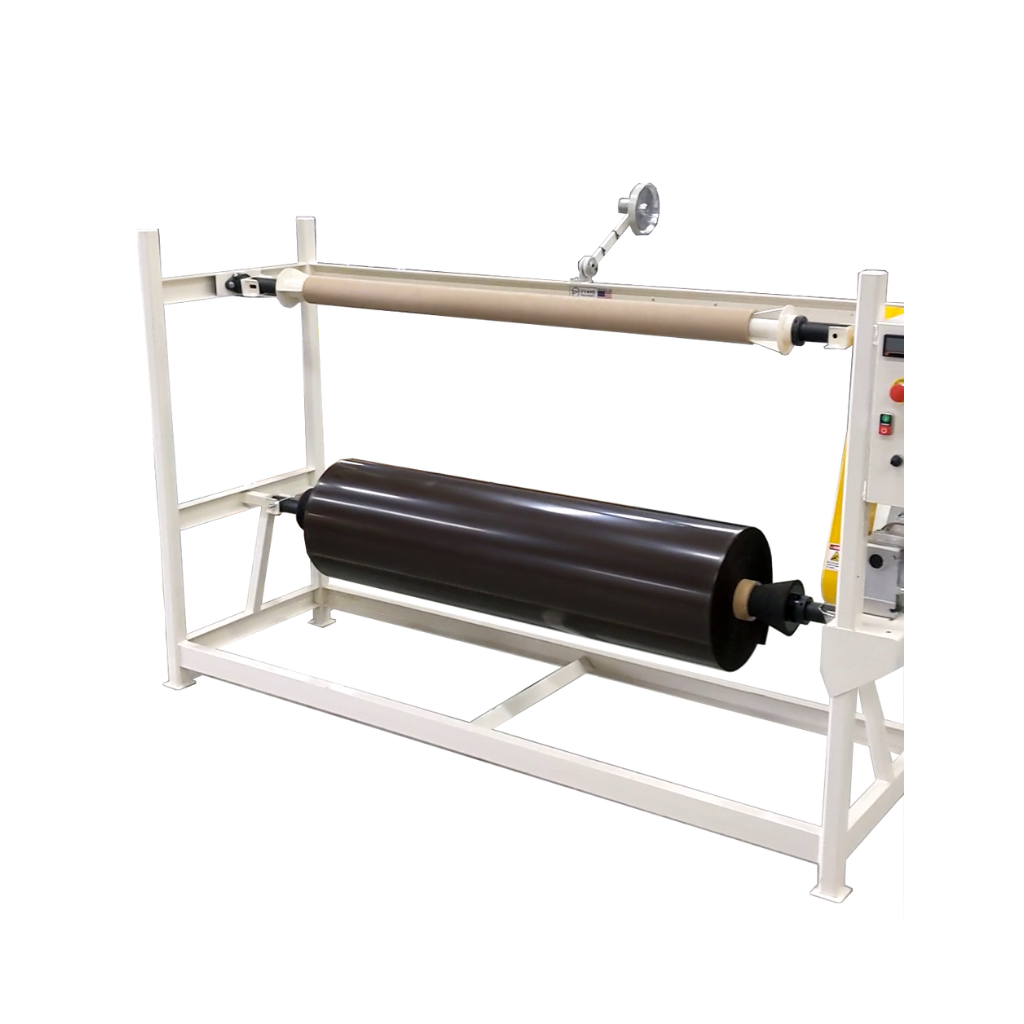

Laminate / Vinyl Recoiler "The Rewinder"

Standard Features

• 2 Roll bars capable of holding up to 900 lbs
• 2 core fixing cones on each roll bar
• • Rolls are manually positioned on the bars
• Locking pins to secure roll bars into place
• 1 linear encoder to measure material length
• • Linear encoder is manually placed into position on roll
• Anti-static grounding
• Controlled via buttons on the electrical enclosure to perform the following functions:
• • Main power
  • Start/Stop
  • Manual jog
  • Encoder Display

Technical Data and Specifications

• • Machine Dimensions
• • Footprint: 7’ x 4’ (approximate)
• Core Width
• • Maximum: 62”
• Core Inner Diameter
• • Minimum: 2.5"
  • Maximum: 4.5"
• Roll Outer Diameter
• • Maximum: 1450mm
• Roll Weight
• • Maximum: 900 lbs
• Gearmtor
• • Power: 0.75 hp
• Speed: variable
• Power Requirements: 110V, 1Ø, 60Hz, 15A
• Power Consumption: 15 Amps
• Air Requirements: N/A
