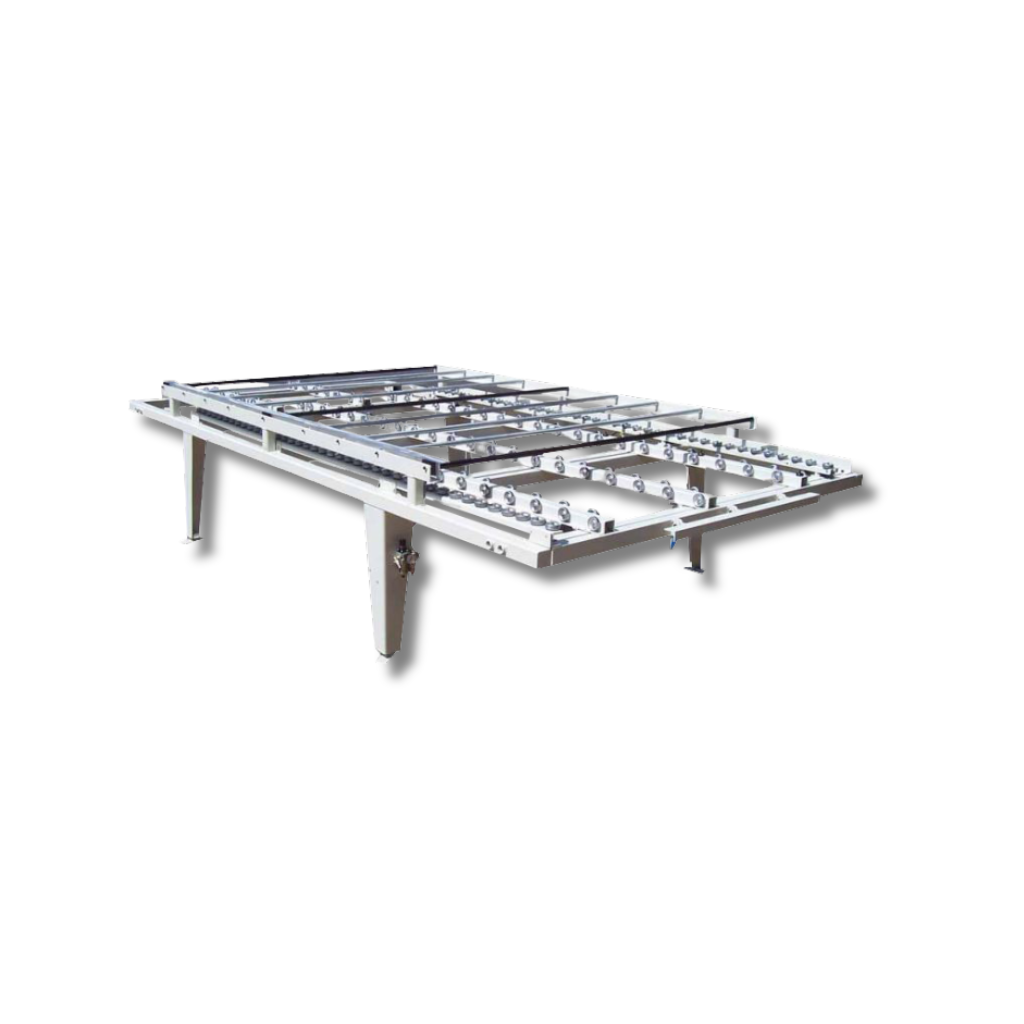

EM 0366 Index Table for Countertop Fabrication Using Contact Adhesive
Description:
The Evans Machinery Model 0366 Index Table aligns laminate and core stock accurately. The fully adjustable design accepts materials up to 62” wide by 145” long, and is the ideal complement to the 0207 Pinch Roller. Adjustable table guides assure quick and correct spacing between core stock and backsplash for the cove bend. An air supply of only 80 PSI is required.
Standard Features:
Maximum Length: 12'
Adjustments Up To 61" Wide
Pneumatically Operated Core Positioning
Push Button Pneumatic Controls
Includes Filter Regulator
Electrical: N/A
Air Requirement: 80 PSI
Options Available:
- Feed Direction: Left to Right Feed or Right to Left Feed
- Passing Line Height: 29.75" or 36" or 39"
- Spacing Pins Diameter” 0.26” or 0.35”
Shipping Dimensions 168" L X 25" W X 24" H
Shipping Weight: 1000 LBS
